When a wireless bridge makes more sense than trenching fiber
Say two buildings need to share one network, and there’s a street, a parking lot, a rail spur or a creek between them. There are three ways to connect them. You can lease a carrier circuit and pay every month, trench fiber and pay once, or put a radio on each roof.
The cost of a trench depends on what’s on top of the ground more than on the distance. Three hundred feet across dirt you own is cheap. The same three hundred feet across a public street is a different project on a different schedule, because it brings an encroachment permit, traffic control, saw cutting and asphalt restoration. Where the path crosses land you don’t control, fiber needs an easement and a bridge needs line of sight and roof rights. On an industrial site with a detached office or a yard building, the gap is often short and the ground is yours, so conduit comes out ahead again.
| Factor | Wireless bridge | Trenched fiber |
|---|---|---|
| Cost driver | Radios, mounts and labor at two endpoints | Linear feet of trench, restoration and permits, not the fiber |
| Lead time | Path survey, equipment, two roof calls | Longer wherever a permit, easement or street cut is involved |
| Capacity | Set by band, channel width and path length | Set by the optics, upgradeable without touching the cable |
| Reliability | Depends on the path staying clear; weather affects the high bands | Unaffected by weather, fog, foliage or a new building |
| Permitting | Roof and structural work; FCC station license only on licensed microwave | Encroachment permit, easement, traffic control, restoration |
| Reversibility | Removable and relocatable | Permanent once it’s in the ground |
The table leaves out the third option, a leased carrier circuit, because it isn’t an asset you own. It puts nothing on either roof and no capital in the budget, and the carrier holds the service level agreement and sends the truck when the circuit goes down. In exchange, the owner takes on a monthly charge that lasts as long as the link does, and a capacity set by the contract instead of the hardware. At an address the carrier hasn’t served before, there’s also a lead time measured in months while the circuit is built. It fits an organization that wants the link off its own maintenance list and can wait for it.
A bridge isn’t always the right call. Fiber comes out ahead on a twenty year view where the ground is yours, where it’s already being opened for other utilities, where the link has to hold up regardless of weather or whatever gets built next door, and where capacity keeps climbing. At Touro University in Vallejo, the campus building renovation included a fiber backbone between buildings. On a campus with controlled ground, a long service life and rising uplink requirements, fiber was the right choice over a radio link. Our fiber optic cabling page covers that side of the decision. Telelink Business Services is a licensed C-7 Low Voltage Systems Contractor, CSLB License #472017.
Line of sight, Fresnel zone and the path survey
Line of sight means more than being able to see the other roof. A radio link needs the ellipsoidal volume around the direct path kept clear. That volume is the first Fresnel zone, and the working rule is to keep at least sixty percent of it free of obstruction. It’s widest at the midpoint of the path, and it grows as the path gets longer and as the frequency gets lower. A parapet that clears the sight line by a foot can still sit inside the zone and cost the link several decibels.
Our path survey covers four things:
- Endpoints. Exact mount locations, height above the roof, the azimuth and elevation between them, and whether the owner controls both roofs.
- Obstructions over time. Trees leaf out in spring, a tower crane on the neighboring lot can block the path for a year, and a new rooftop screen or mechanical unit can block it permanently. We look at what’s planned, not only at what’s there.
- Spectrum. A scan at both ends in the band under consideration. In a dense area the band is already occupied, and the interference floor sets the rate the link can hold.
- Structure and roof condition. Whether the mount can be supported where it needs to go and whether the roofing warranty allows a penetration.
We model the path first, then confirm it on the roof. If the path is marginal, we set up a temporary link and measure it before anyone buys permanent equipment.
Choosing the band: 5, 6 and 60 GHz or licensed microwave
The band you choose sets the capacity, the usable distance and how much the weather matters.
| Band | Licensing | Practical character |
|---|---|---|
| 5 GHz | FCC Part 15, unlicensed | Longest reach of the unlicensed three, most crowded, radar avoidance obligations on some channels |
| 6 GHz | FCC Part 15, unlicensed | Wider channels and less occupancy today; outdoor standard power operation is subject to automated frequency coordination |
| 60 GHz | FCC Part 15, unlicensed | Multiple gigabits over short paths, heavily attenuated by the atmosphere and by rain |
| Licensed microwave | FCC Part 101, station license required | Exclusive coordinated frequency, protection from interference, the highest availability |
At 60 GHz, oxygen absorption limits the path length. Atmospheric oxygen absorbs signal in that band at roughly 15 dB per kilometer, so 60 GHz stays a short path technology no matter how much power the radio has. Rain fade adds to that loss. So the usable path length depends on the fade margin you want during a storm, not on what works on a clear day. A 60 GHz link engineered to a fair weather distance can drop in a winter storm. We size the path to a target availability using regional rainfall statistics, instead of to the maximum range on the data sheet.
Licensing is the other big difference between the bands. The unlicensed bands carry no station license at all. Licensed microwave is the exception, and it brings two obligations before a radio goes up: frequency coordination against the incumbents already on that path, and a station license held by the owner or operator of the building. We prepare the coordination and install the equipment, and the license stays with the owner.

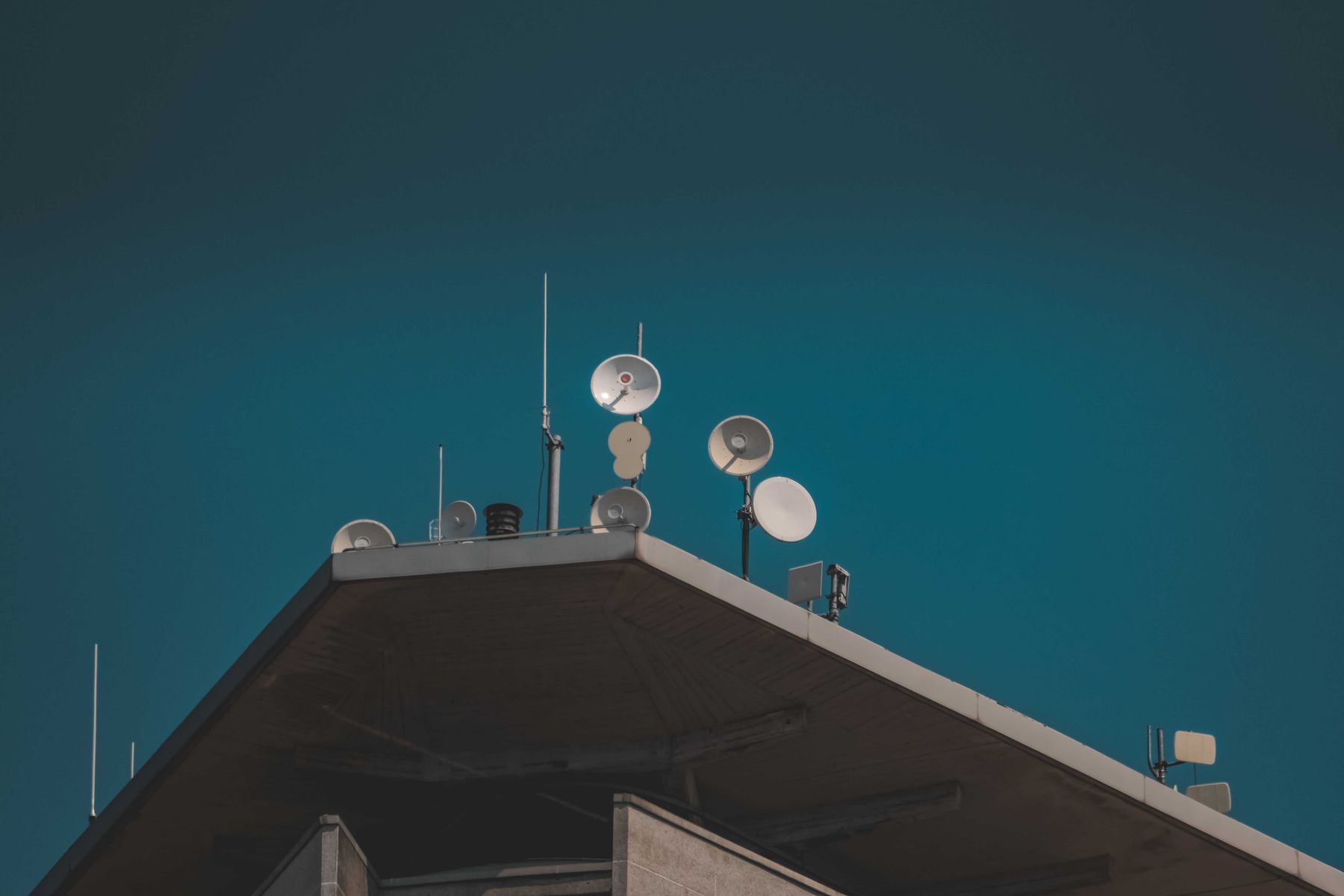

Mounting, masts and roof penetration coordination
A bridge needs a stable mount. Beamwidths are narrow, so at 60 GHz a mast that flexes in the afternoon wind shows up as a link that degrades on a daily cycle. A short, rigid mount is generally better than a tall, flexible one.
Non-penetrating ballasted mounts work on a flat roof where the structure carries the ballast and the wind loading has been checked. Penetrating mounts get used where the path needs the height, and the roofing contractor flashes the penetration to keep the roof warranty intact.
We provide the mount locations, the manufacturer’s loading data, the pathway and conduit requirement, and the power requirement at each end. Our submittals mark where our work meets each other trade’s. The steel, the mast, the roof membrane and the line voltage feed are another contractor’s licensed work, built to those numbers.
The cable between the building and the radio is usually the part that fails first. So it gets outdoor rated shielded cable, a drip loop below the connector, a weatherproofed termination at the radio, and a run kept inside the same hundred meter limit as any other Ethernet channel. If the radio takes power over that cable, the injector stays inside with the switch.
Grounding, surge protection and the building entrance
An antenna on a roof is a lightning target and a surge path into the building. Antenna grounding and bonding are installed per California Electrical Code Article 810 as it applies to the antenna and the mast, and the communications circuit requirements for the Ethernet media entering the building.
In practice, the mast and the radio are bonded to the building grounding electrode system, and the bonding conductor runs as short and as straight as the building allows. A listed surge protective device goes on the Ethernet run at the point of entrance, mounted on a bonded bracket with the cable shield landed on it. Sharp bends work against a bonding conductor, so the route matters as much as the size.
The bond to the building grounding electrode system is electrical, C-10 scope. We install the surge protection, the entrance hardware and the bonding within Division 27 where the spec assigns that work to us, and we coordinate locations where it assigns the work to Division 26. Either way, we draw where our scope ends and the electrician’s begins, the same way we do on a network room buildout.
Alignment, commissioning and capacity planning
Alignment happens in two passes. The coarse pass uses surveyed coordinates, a compass bearing and an inclinometer. The fine pass uses the radio’s received signal indicator, worked from both ends at once. The mistake to avoid is peaking on a side lobe, where the link comes up and looks acceptable but runs many decibels below where it should. If the received level doesn’t match the calculated path loss, the antennas likely aren’t pointed at each other yet.
Commissioning means recording a set of numbers on the day the link is accepted: received signal level at each end, the modulation rate the link settles at, the margin against the manufacturer’s recommended fade margin, throughput measured in both directions, and latency. Two winters later, those numbers are the clearest way to tell whether a slow link has really changed.
We plan capacity around the traffic that crosses the link, not the port speed of the switch it lands on. A remote building with cameras writing to a recorder in the main building generates continuous upload, which sets a minimum load the design has to carry. The security camera systems page covers how recording storage is sized. Interference shows up as retransmission and jitter long before lost throughput does. Where the network runs on Cisco Meraki, we install and configure the switching and wireless at both ends, so the link is one hop inside a network managed from a single console, as described on our wireless networks and Wi-Fi page.
Bridges as a temporary link or a redundant path
Not every bridge has to be permanent, which is one of its advantages.
As a temporary link, a bridge can get a construction trailer, a swing space or a newly acquired building onto the network in days instead of waiting on a permit cycle. When the fiber lands, the radios either come down and get reused or stay up as the second path.
As a redundant path, a bridge alongside trenched fiber gives you real diversity, because the two fail for unrelated reasons. A backhoe can cut the fiber and a storm can degrade the radio, but rarely on the same afternoon. That only helps if the failover is configured and tested, so we build the routing, force a failover at commissioning, and document what the network does when the primary path drops. If nobody has tested the failover, you can’t count on it as a backup.
