Where fiber belongs in a commercial building or campus
Fiber optic cabling carries the backbone of a commercial network. That means the links between the MDF and each IDF in a building, the links between buildings on a campus, and the links from the carrier entrance to the equipment room. It also shows up in the horizontal where copper can’t reach, like a camera pole in a parking lot or a warehouse endpoint 200 meters from the nearest IDF.
We design, install, splice, terminate and test fiber as part of a structured cabling system or as a standalone backbone upgrade in an existing building. Telelink Business Services is a licensed C-7 Low Voltage Systems Contractor, CSLB License #472017. The optical backbone is usually bid under Division 27 13 23.
Single-mode OS2 or multimode OM3, OM4, OM5: how we choose
The first design decision is the fiber type. It comes down to distance, the optics your switches will use, and how long you plan to keep the cable in the wall.
Single-mode OS2 has a small core, roughly 9 microns, and carries light at 1310 nm or 1550 nm. Inside a building or across a campus, distance isn’t a practical limit, and OS2 supports 10 Gb/s and 100 Gb/s links over kilometers. The optics cost more than multimode optics at the same speed, although the gap has narrowed. OS2 is the right fit for campus links between buildings, for any backbone that may need to run 40 or 100 Gb/s later, and for links longer than the multimode limits below.
Multimode OM3, OM4 and OM5 have a 50 micron core and use 850 nm optics that are cheaper and draw less power. The tradeoff is distance. OM3 supports 10 Gb/s to 300 meters. OM4 supports 10 Gb/s to 400 meters, and 40 or 100 Gb/s over shorter distances using parallel optics. OM5 is wideband multimode designed for short wavelength division multiplexing, which lets one pair of fibers carry several wavelengths. For the common optics, it supports the same distances as OM4. Multimode is common for in-building riser backbones where the longest run is a few hundred meters.
| Fiber | Core | 10 Gb/s reach | Typical use |
|---|---|---|---|
| OM3 | 50 µm | 300 m | Existing in-building backbones, extensions to match |
| OM4 | 50 µm | 400 m | New in-building riser backbones |
| OM5 | 50 µm | 400 m, SWDM capable | In-building where higher speeds on duplex fiber are planned |
| OS2 | 9 µm | 10 km and beyond | Campus links, carrier entrance, future 40G and 100G |
If the spec leaves the choice open, we usually recommend OS2 for anything between buildings. Inside the building, we price OM4 and OS2 both ways so the owner can decide. We also recommend more strands than you need on day one. Twelve strands where you need four costs a little more in cable and almost nothing more in labor, and it can save a second pull later.
Riser backbone and campus backbone design
In-building backbone follows the star topology in ANSI/TIA-568, where each IDF links directly to the MDF. Riser cable runs in a shaft or in sleeves through each floor, inside a pathway that protects it from the other trades, and it terminates in a fiber enclosure in each room. We use riser rated (OFNR) or plenum rated (OFNP) fiber cable depending on the space, as required by Article 770 of the California Electrical Code (Title 24, Part 3).
Campus backbone links buildings through underground conduit, existing utility tunnels, or in some cases aerial plant. We design the route, the conduit and innerduct sizing, the pull points and the cable type, and we coordinate the trenching and conduit installation with the GC and the electrician. Outside plant cable is armored or gel-filled, and it isn’t listed for use inside a building beyond a short distance from the entrance. So we plan the transition to indoor rated cable, or to a splice enclosure, at the entrance facility.
Before we order cable, we calculate the loss budget for every backbone link. The budget adds up the cable attenuation for the length, the maximum loss per mated connector pair (0.75 dB in ANSI/TIA-568.3-D), and the maximum loss per splice (0.3 dB). Then we compare the total against the power budget of the optics you plan to use. If the link doesn’t close with margin, we fix the design on paper, before any cable gets pulled.
Fusion splicing, connectors and enclosures
We terminate fiber one of three ways, and the spec usually decides which one.
Fusion splicing to factory-terminated pigtails. The cable strands are fusion spliced to pigtails with factory-polished connectors, and the splices sit protected in a splice tray inside the enclosure. This gives the lowest and most consistent loss per termination, and it’s how we terminate most backbone and outside plant cable.
Pre-terminated trunk cable. The cable is made to length with connectors on both ends, often MPO connectors carrying 12 or 24 fibers each, and it lands in a cassette that breaks out to LC duplex ports. Pre-terminated trunks go in quickly and test predictably. The catch is that the length has to be right, and the pathway has to fit the pulling grip and the connector bundle.
Field-polished or mechanical connectors. These are for small counts and repairs. They’re acceptable where the spec allows them, but we prefer splicing for anything permanent.

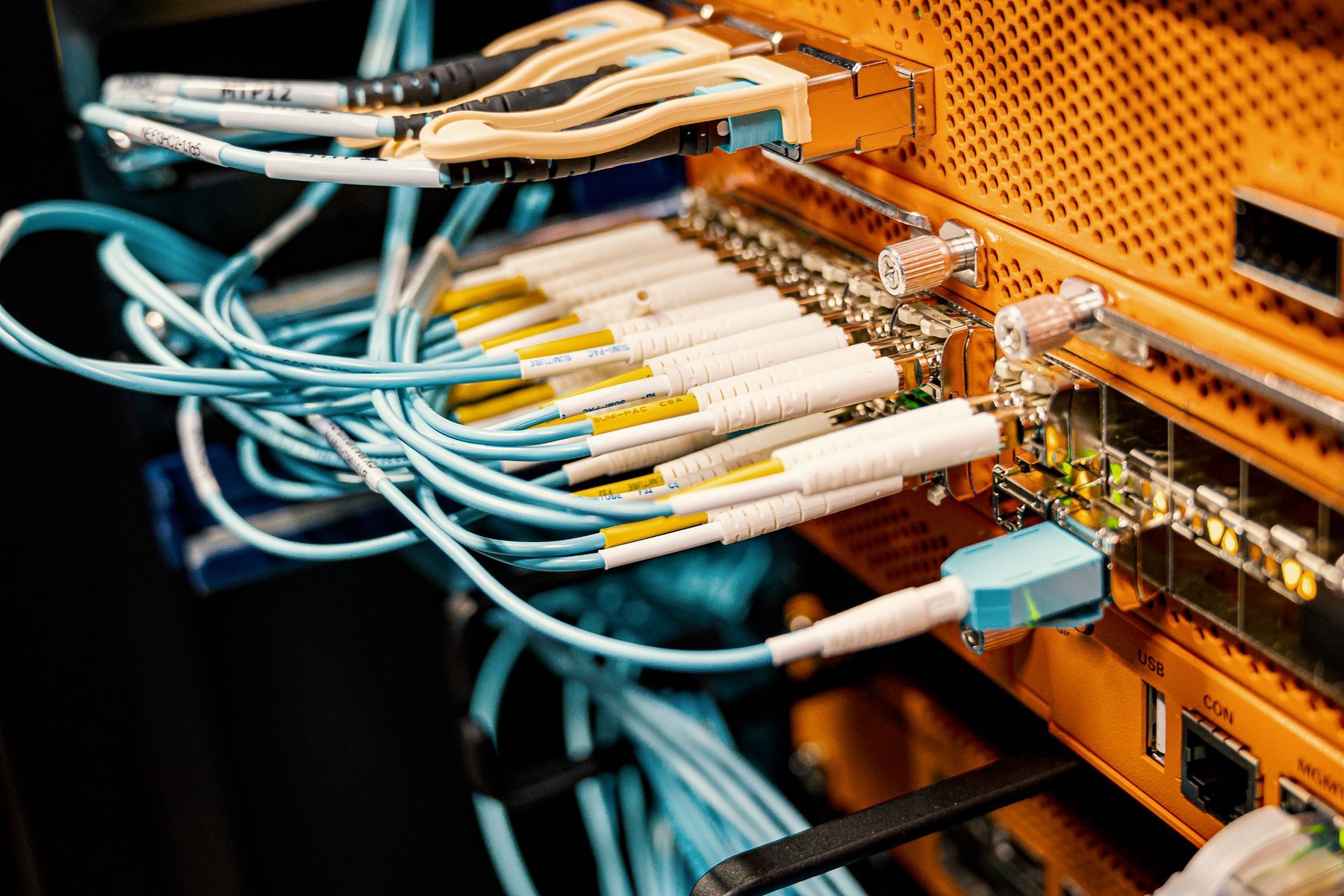

LC duplex is the standard connector on modern switches and patch panels. SC is common on older equipment and some carrier handoffs. MPO is used for parallel optics and high-density trunks. Polarity has to be planned end to end so that transmit lands on receive, so we document the polarity method on the drawings and label every port per ANSI/TIA-606. Enclosures are rack-mount or wall-mount and sized with spare capacity, and every strand gets labeled at both ends. Corning, CommScope, Panduit and Leviton are the fiber and connectivity lines we see specified most often on California backbone work. If the drawings name one, that’s the line we install.
Outside plant, conduit and the building entrance
Outside plant (OSP) fiber work brings civil and code items into the scope. The conduit route needs pull boxes at intervals and at every change of direction, sized for the cable and the pulling method. Innerduct inside a larger conduit protects the fiber and saves room for a second cable. At the building entrance, the conduit is sealed against water and gas. The cable is bonded and grounded where it has metallic armor or strength members, and the transition to indoor cable or a splice enclosure happens within the distance Article 770 allows for unlisted OSP cable inside a building.
Trenching, boring and the underground conduit are usually civil or electrical scope. We provide the route, the conduit and innerduct specification, the pull box locations and the entrance detail. Then we coordinate with the GC and the electrician so the conduit is ready when the cable arrives. The bond from the entrance protector or armor to building ground is electrical scope, and we show it on our submittal. On an existing campus, we survey the existing conduit with a mandrel and a pull line before we commit to a cable size. A collapsed duct found on pull day can throw off everyone’s schedule.
Tier 1 and Tier 2 testing to ANSI/TIA-568.3-D
We test every fiber link we install, using the method the spec calls for.
Tier 1 testing uses an optical loss test set (OLTS) to measure the insertion loss of every strand end to end. It’s done in both directions where specified, at the wavelengths the strand will carry (850 and 1300 nm for multimode, 1310 and 1550 nm for single-mode). Tier 1 also records length and verifies polarity. We compare the measured loss with the calculated loss budget for the link, and every strand has to pass.
Tier 2 testing adds an optical time domain reflectometer (OTDR) trace of every strand. The OTDR shows each connector, splice and bend as an event along the length of the fiber. That means a link that passes on total loss but has a bad splice buried in it still gets caught. Tier 2 also gives you the record you’ll want in five years, when a strand goes dark and you need to know where the break is. Most institutional and public agency specs require Tier 2 on the backbone. If the spec doesn’t mention it, we recommend it and price it as a line item.
Our test sets are calibrated, with reference cords matched to the connector type, and we inspect and clean every connector end face before it’s mated. You get the OLTS results and OTDR traces in the native tester format and as PDF, one record per strand, with labels that match the enclosure and the drawing.
Touro University: a campus fiber backbone in a renovation
On the Touro University campus building renovation in Vallejo, our scope included the fiber backbone along with network cabling, IT room buildout and wireless. The fiber tied the building’s new IT rooms together and connected the building to the campus network. We built the rooms and the backbone while the campus stayed in session.
It’s a good example of what most institutional owners need: a backbone sized for the next decade of switch uplinks, rooms built to hold it, and testing that proves each strand before the IT staff moves in the first switch. Our education market page covers how we approach K-12 and higher education work, and our network room buildout page covers the rooms the fiber lands in. If you’re a public agency with similar backbone needs, our government and public works page covers prequalification and documentation.
Next step
Use request a bid to send us the backbone riser diagram, the site plan, or, if that’s all you have so far, a description of the buildings you need to link. We’ll come back with a design showing fiber type, strand count, termination method and testing tier, with any choices the spec leaves open priced as options. General contractors can read about our prequalification and coordination process on the for general contractors page.
