Network Room Buildout: MDF and IDF Construction for Commercial Buildings

We build telecom rooms for general contractors, agency facilities staff and IT directors so the cabling, the switches and future changes have somewhere to land. Racks and ladder rack are placed to a drawing, panels are terminated and labeled, bonding is done to TIA-607, and you get as-builts at the end.

License
CSLB #472017
Installed by
Our own technicians
Service area
All of California

No obligation. If the work is outside our license, we'll tell you.

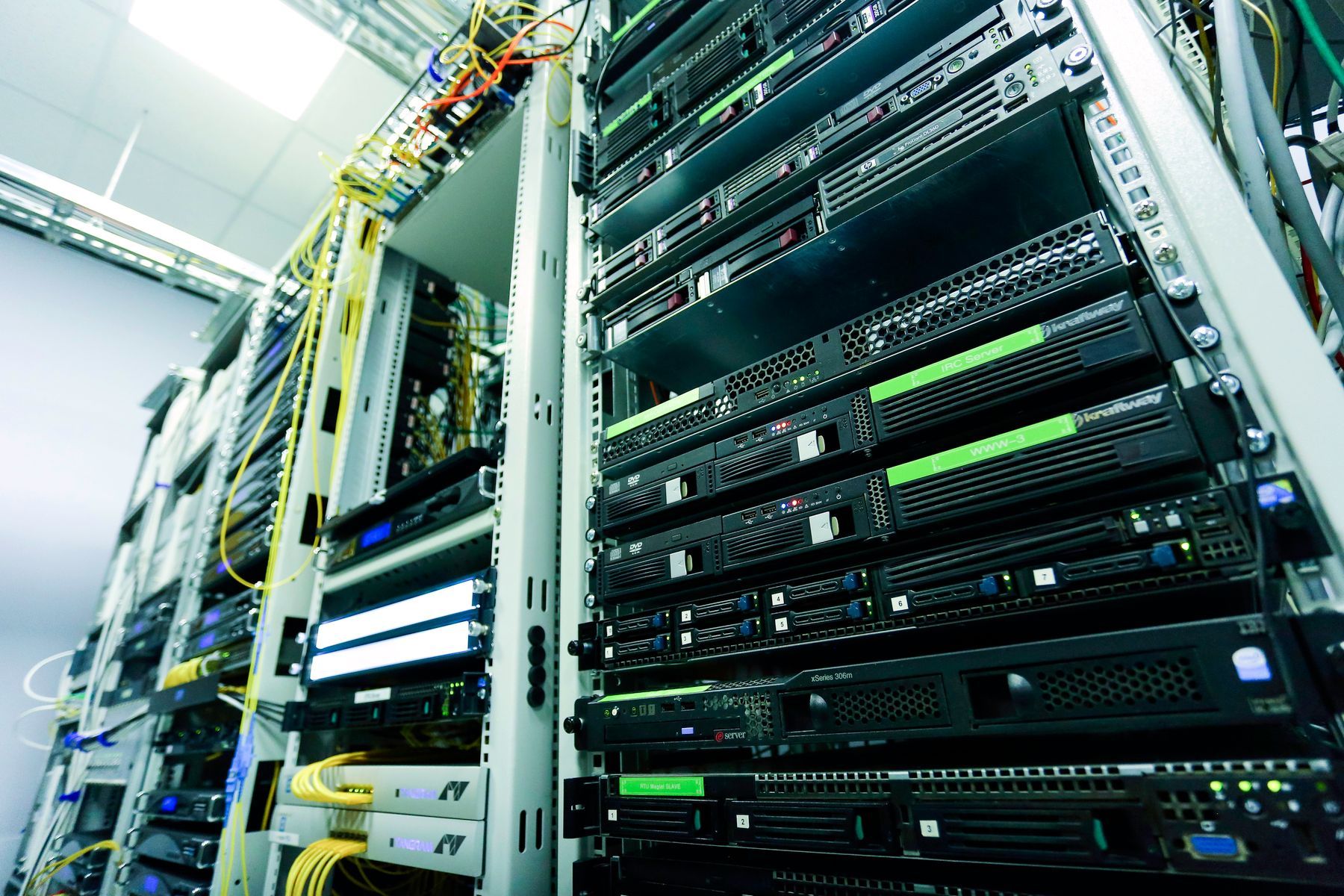

CSLB #472017 · Licensed C-7 contractor Rows of equipment racks in a network room
Equipment we install for this system
  • Cisco Meraki

We aren't tied to any brand. If your drawings call for something else, we'll install to the specification.

What an MDF or IDF buildout includes

The main distribution frame (MDF) and the intermediate distribution frames (IDFs) are the rooms where every cable in the building lands and every switch lives. A well built room stays easy to maintain for years. A poorly built one can hand the IT staff a heat problem, a cable management problem and a grounding problem on day one.

We build telecom rooms as part of a structured cabling project or as a standalone scope, typically bid under Division 27 11 00. The scope includes the backboard, the racks or cabinets, the ladder rack and vertical managers, the patch panels and fiber enclosures, and the horizontal and backbone terminations. It also covers the telecommunications bonding within the room where the spec assigns it to us, the switches where they’re in our contract, and the labeling and as-built documentation. Telelink Business Services is a licensed C-7 Low Voltage Systems Contractor, CSLB License #472017.

Room requirements: TIA-569, TIA-942, cooling and airflow

ANSI/TIA-569 sets the requirements for telecommunications rooms, and we check the architect’s plan against them before we agree the room will work.

  • Size and location: one telecommunications room per floor as a baseline, sized for the area served, located so no horizontal run exceeds 90 meters, and stacked floor to floor where possible so the backbone runs straight.
  • Dedicated use: the room serves telecommunications only. No water or drain piping through the room, no shared storage, and no transformer or electrical panel on a wall shared with the room.
  • Finishes: painted fire-rated plywood backboard, a sealed or finished floor that doesn’t shed dust, a door that opens out and locks, and a ceiling height that allows ladder rack above the racks.
  • Lighting and power: lighting at working height, dedicated circuits for the racks, and convenience outlets on a separate circuit. The circuits are electrical scope, and we specify the quantity and location.
  • Environmental: continuous cooling sized for the equipment load, and a temperature and humidity range the equipment manufacturers accept.

ANSI/TIA-942 covers data centers and the equipment rooms that work like small data centers, such as the server room in a public agency, the head end on a campus, or the room that holds the storage and the core switches. It adds requirements for rack layout, hot and cold aisle arrangement, redundancy ratings for power and cooling, and cable management above and below the racks. If an owner’s spec references TIA-942 for the MDF, we build to it and document what the room achieves. Our guide to MDF and IDF buildouts walks through the room checklist item by item.

Cooling, airflow and equipment placement

Switches and servers turn power into heat, and a closed room with no cooling can climb past the equipment’s rated temperature in an afternoon. The cooling requirement is calculated from the equipment load, allowing for growth. It’s delivered either as a dedicated split system for the room or as a supply and return from the building system, with the controls set for continuous operation. Cooling equipment and its circuits are mechanical and electrical scope. We provide the heat load, the room layout and the airflow requirements so those trades can size their work.

Inside the room, we place equipment so it can breathe. Switches that pull air front to back go in with intakes facing the cool side and exhausts facing the warm side. Blanking panels fill the empty rack units so hot air doesn’t circulate back to the intake. If the spec calls for hot and cold aisle containment per TIA-942, we build it. Environmental monitoring, with temperature and humidity sensors that report to the network, is included when the owner wants it, and it’s a small cost compared with the equipment it protects.

Racks, cabinets, ladder rack and cable management

We start with the rack layout. We draw the room showing each rack, its rack unit allocation from top to bottom (patch panels, horizontal managers, switches, fiber enclosures, power distribution, UPS), the clearances in front and behind, and the ladder rack overhead. A two-post rack works well for patch panels and access switches in an IDF. A four-post rack or a cabinet is better for servers, core switches and anything deep or heavy. Cabinets add security and controlled airflow, but they need more floor space and more planning for the cable entry.

Ladder rack carries the cable from the wall or ceiling entry to the top of each rack, at a height that leaves working room. Radius drops sit where the cable turns down into the rack, to keep the cable within its bend radius. Vertical cable managers between and beside the racks, along with horizontal managers between patch panels, keep the patch cords routed instead of draped. We size the vertical managers for the patch cord count at full port occupancy, because a manager sized for day one can fill up within a few years.

Racks are anchored to the floor per the manufacturer’s instructions and the seismic requirements on the drawings. Overhead ladder rack is supported from the wall and the structure, not from the ceiling grid. Every rack, manager and ladder section is bonded to the room busbar, as described below.

Patch panels, terminations and labeling schemes

Horizontal cable terminates on patch panels in the same order as the outlets it serves, in the rack position shown on the drawing. We terminate to ANSI/TIA-568.2-E for the category installed and keep the pair untwist and the jacket strip to the minimums. Then we dress the cable into the rear managers, so the panel can be pulled forward for service without putting stress on the terminations. Backbone fiber lands in a rack-mount enclosure with spare cassette or adapter panel positions, built and tested as described on our fiber optic cabling page. Copper backbone for voice or building systems lands on 110 blocks or on patch panels, whichever the spec calls for.

Labeling follows ANSI/TIA-606. Each room, rack, panel and port gets an identifier, and together they form a scheme we agree on with the owner’s IT staff before we print a single label. A common scheme names the room, the rack, the panel and the port. That way a port label by itself tells a technician where the cable lands, and the outlet label at the desk tells them the reverse. Cable labels are machine printed and applied at both ends. Panel labels are printed on the panel’s designation strips, and rack and room labels are engraved plates. The scheme, the cable schedule and the test results all use the same identifiers, and the as-built drawing ties them together.

Bonding and grounding per TIA-607 and the electrical handoff

ANSI/TIA-607 describes the telecommunications bonding and grounding system. It starts with a bonding conductor from the building’s electrical service ground to a telecommunications main grounding busbar (TMGB, called the primary bonding busbar in newer editions) in the MDF. A telecommunications bonding backbone (TBB) runs from the TMGB to a telecommunications grounding busbar (TGB, or secondary bonding busbar) in each IDF. From the busbars, bonding conductors go to every rack, cabinet, ladder rack, cable tray, enclosure and metallic pathway in the room.

The split between trades is specific here, and we spell it out on our submittals. The electrician performs the bond from the building electrical ground to the telecommunications busbar. That conductor and its connection to the service ground are electrical (C-10) scope. We install the busbars, the telecommunications bonding backbone between rooms, and the bonding jumpers to the racks and equipment only where the specification assigns that work to Division 27. Where the spec assigns the busbars and the backbone to Division 26, we coordinate their locations and bond our racks and pathways to them. Either way, we bond the racks in our rooms before equipment goes in, and the as-built shows which conductor belongs to which trade.

Switching, patching and as-built documentation

When switching is in our scope, we install and configure Cisco Meraki MS switches. The PoE budget is sized for the phones, cameras and access points on each switch, the VLANs are built to the network design, and the switches are managed from the Meraki dashboard alongside any MR access points and MV cameras on the project. We stage the configuration before the switches arrive on site and cut over ports on the schedule your IT staff sets. If the owner has a different switch standard, we install that platform to the specification.

We patch to a patching schedule, port by port, with patch cords of the right length and color routed through the managers. A rack that starts out patched neatly tends to get maintained neatly.

The as-built package for a room includes the rack elevations as installed, the room plan, the bonding diagram with the trade responsibility marked, the patching schedule, the cable schedule and test results for every link that lands in the room, the labeling scheme, the switch configuration export where switching was in our scope, and photographs of the finished room. Our Division 27 and 28 spec checklist lists what a complete room closeout should contain, so you can write it into the spec.

Rooms we built at the State Controller’s Office and Touro University

Two projects show the range of this work. At the State Controller’s Office in Sacramento, we built the IT network room as part of a tenant improvement on a working state agency floor. The network cabling and surveillance land in that room, and we sequenced the work so the agency’s staff could keep working. At Touro University in Vallejo, we built the IT rooms as part of a campus building renovation that also included a new fiber backbone between them, new network cabling, and wireless.

In both cases, the rooms went in first, so the cabling and the equipment had somewhere to land as each phase came online. Our government and public works page covers the prequalification, prevailing wage and documentation side of agency work.

Next step

Send us the room plans through request a bid, along with the rack elevations if the engineer has drawn them or the equipment list if they haven’t. We’ll send back a room by room scope that identifies where the electrical, mechanical and bonding work falls, so the GC can close the gaps between trades before the bid is due. General contractors can review our process on the for general contractors page.

FAQ

Questions about network room buildout

How big does a telecom room need to be?

TIA-569 sizes the room to the floor area it serves and requires a dedicated space with working clearance in front of and behind the racks. As a rule of thumb, plan on one room per floor, stacked floor to floor, placed so no horizontal run exceeds 90 meters, and large enough for one more rack than the day-one layout needs.

Link to this answer
Who grounds the telecom room?

The electrician bonds the building electrical ground to the telecommunications busbar, and that conductor is electrical scope. Where the spec assigns the busbars, the bonding backbone between rooms and the rack jumpers to Division 27, we install them to TIA-607. Where it assigns them to Division 26, we coordinate locations and bond our racks and pathways to them.

Link to this answer
Do you install the network switches or just the racks?

Either one, depending on what the contract covers. When switching is in our scope, we install and configure Cisco Meraki MS switches with the PoE budget, VLANs and uplinks built to the network design. If the owner has a different switch standard, we install that platform to the specification. When switching is owner furnished, we build the room, patch to a schedule and coordinate the cutover.

Link to this answer
What cooling does an IDF need?

Enough to remove the heat the equipment produces, continuously, including nights and weekends. We calculate the heat load from the equipment list, allowing for growth, and give it to the mechanical engineer. A closed closet with two PoE switches and no cooling can climb past the equipment's rated temperature.

Link to this answer
What's in the as-built package for a room?

You get the rack elevations as installed, the room plan, the bonding diagram with the trade responsibility marked, the patching schedule, the cable schedule and test results for every link that lands in the room, the labeling scheme, the switch configuration export where switching was in our scope, and photographs of the finished room.

Link to this answer
