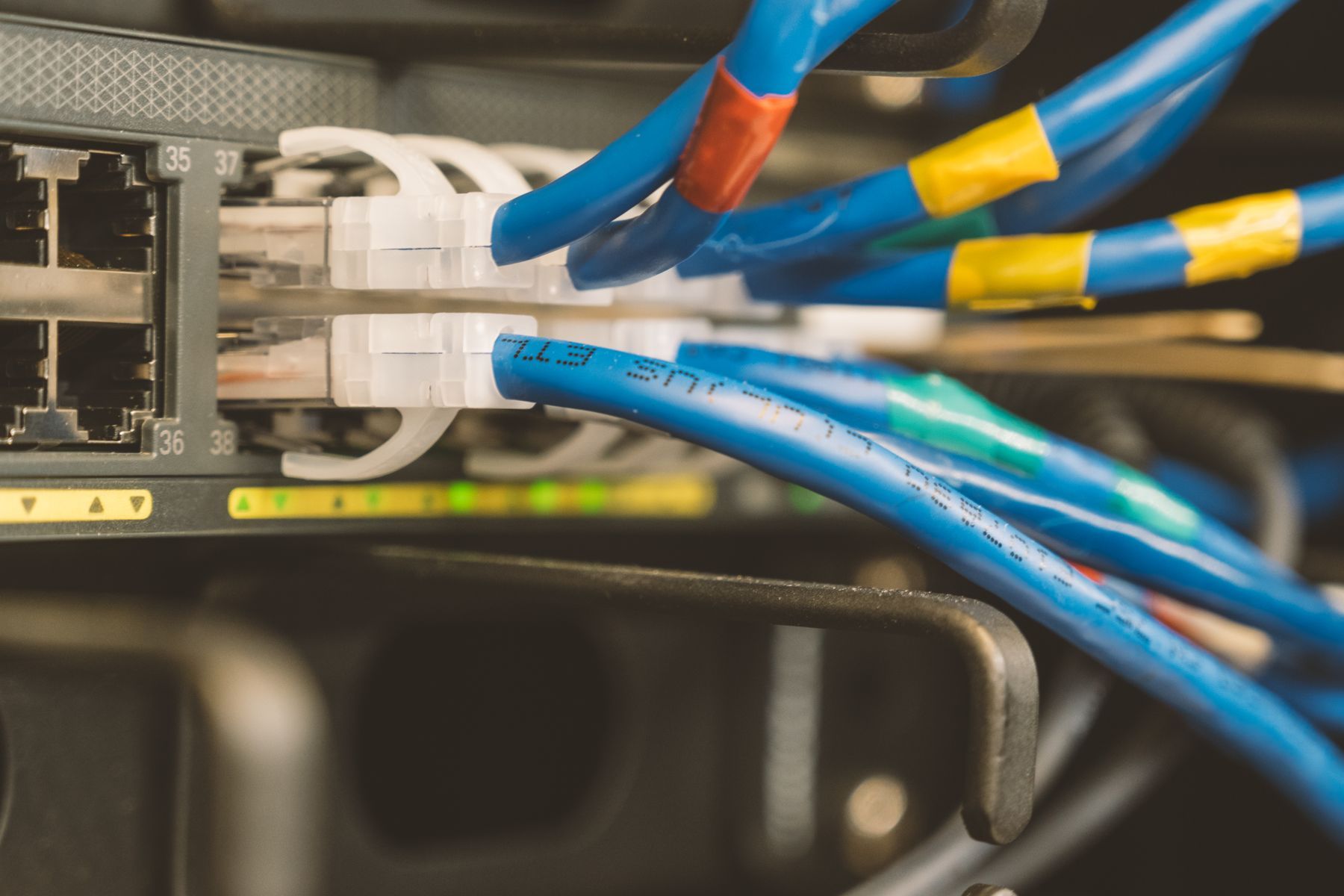

CSLB #472017 · Licensed C-7 contractor Blue category cables terminated on a rack-mounted network switch
Equipment we install for this system
  • Panduit
  • CommScope
  • Leviton
  • Belden

We aren't tied to any brand. If your drawings call for something else, we'll install to the specification.

What a structured cabling system includes

Structured cabling is the permanent, passive infrastructure that every network, phone, camera, access control and Wi-Fi system in your building runs on. ANSI/TIA-568 divides it into subsystems. We estimate and build to those same subsystems, so the scope is clear on the bid and still clear at closeout.

  • Entrance facility: where the carrier or campus service enters the building, with the demarcation and protection.
  • Equipment room and telecommunications rooms: the MDF and IDFs that hold the racks, patch panels and active gear.
  • Backbone cabling: the fiber or multipair copper that links the entrance facility, the MDF and each IDF.
  • Horizontal cabling: the Cat6 or Cat6A runs from each IDF to each work area outlet.
  • Work area: the faceplate, jack and patch cord at the desk, the ceiling box for a wireless access point, or the surface box behind a camera.

On a typical commercial job, Division 27 15 00 covers the horizontal and backbone work. The rooms themselves fall under our network room buildout service, and the fiber backbone is detailed on our fiber optic cabling page. This page covers the system as a whole: how we design it, how we install it, and what you get when we’re done.

Telelink Business Services is a licensed C-7 Low Voltage Systems Contractor, CSLB License #472017. We’ve been in business since 1983, we self-perform the cabling work, and we work in commercial and institutional buildings across California. Panduit, CommScope, Leviton and Belden are among the cable and connectivity lines commonly specified on California commercial work, and we build to whichever line the specification names.

Horizontal and backbone design to ANSI/TIA-568

Most specs we bid reference ANSI/TIA-568.2-E for balanced twisted pair and ANSI/TIA-568.3-D for optical fiber. Here are the design rules that matter most on the estimate.

The horizontal channel is limited to 100 meters: 90 meters of permanent link cable in the wall and ceiling, plus 10 meters total of patch cords at both ends. Before we agree to a room layout, we check every IDF location against the farthest outlet it serves. A room placed to suit the floor plan can put the far corner of the floor past 90 meters. When that happens, the fix is a second IDF, since a longer cable would break the limit.

Your choice of category affects both cost and pathway size. Cat6 is specified to 250 MHz and supports 1000BASE-T to the full 100 meters. It only supports 10GBASE-T over short runs, roughly 37 to 55 meters depending on alien crosstalk (signal coupling between neighboring cables). Cat6A is specified to 500 MHz and supports 10GBASE-T to the full 100 meter channel. Cat6A cable is larger in diameter and heavier, so it needs larger pathways and a wider bend radius, and it costs more in both material and labor. For a full comparison, see our guide on Cat6 vs Cat6A for a commercial building.

AttributeCat6Cat6A
Specified bandwidth250 MHz500 MHz
1000BASE-T100 m100 m
10GBASE-TRoughly 37 to 55 m100 m
Typical useWorkstations, phones, most camerasAccess points, 802.3bt PoE, 10G desks
Pathway impactStandard J-hooks and trayLarger tray and sleeve fill, wider bend radius

Backbone design follows the star topology in TIA-568. Each IDF gets a fiber backbone to the MDF, sized for the switch uplinks you expect in ten years instead of the ones you’re buying this year. Where the spec calls for a copper backbone for phones or building systems, we run multipair cable and terminate it on 110 blocks or patch panels as specified. Backbone fiber is OM4 multimode or OS2 single-mode to the specification. Cat5e shows up on our jobs only where existing plant is being reused or extended, and we don’t recommend it for new horizontal cable.

We also read the spec for what it doesn’t say. If the drawing shows outlets but no count of jacks per outlet, we ask before we price. If it shows an IDF but no pathway between it and the MDF, we flag it in the RFI log. Our Division 27 and Division 28 spec checklist lists the items we look for.

Pathways, cable ratings and firestopping

ANSI/TIA-569 covers the pathways and spaces that carry the cable. On our jobs, that means cable tray in the corridors, J-hooks in the tenant spaces at intervals that keep sag under control, sleeves through rated walls and floors, and conduit where the cable is exposed, outside, or in a space the owner wants protected. We size tray and sleeves to a fill percentage that leaves room to grow, so they aren’t already full on day one.

Cable jacket rating depends on where the cable runs. The listing requirements come from the California Electrical Code (Title 24, Part 3), in Article 800 and the related communications articles. Plenum rated cable (CMP) is required in spaces used for environmental air. In most commercial buildings, that means the ceiling cavity above a lay-in ceiling when it serves as a return air plenum. Riser rated cable (CMR) is acceptable in vertical shafts between floors and in non-plenum spaces. Plenum cable costs more, so we check the mechanical drawings to confirm which ceilings are plenums before we price the job. A wrong guess in either direction can mean you either overpay or fail inspection.

Every penetration through a fire rated wall or floor is firestopped with a listed system matched to the wall assembly and the cable fill. We photograph each penetration before and after firestopping and include the photos and the listed system numbers in the closeout package. If the GC has a single firestopping subcontractor for all trades, we coordinate the sleeves and leave the sealing to them, and our proposal says so.

Rough-in coordination with the electrician and the GC

Cabling comes late in the schedule and is easy to damage, so most of our coordination happens before the first cable is pulled. We need three things from the GC and the electrician.

First, the box locations for each outlet. On new framing, we set our own mud rings and pull strings during the electrical rough-in, before insulation and drywall. On hard-lid ceilings, we set our boxes and conduit stubs before the ceiling closes. Once drywall is up, a missed location usually turns into surface raceway or a patch, and either one looks worse than a box set on time.

Second, the pathway. If the electrician is providing conduit or sleeves for our cable under Division 26, we walk the sleeve and conduit locations with them and confirm sizes against our fill calculations. We also check that each sleeve is on the drawing before the inspector sees it.

Third, the room. The telecom room needs its plywood backboard, dedicated circuits, lighting and ground bus before we can build racks. Power to the racks, dedicated circuits, and the bond from the telecom room busbar to the building electrical ground are the electrician’s scope. Our submittals list which parts are ours and which belong to the electrician, so the circuits are planned before the switches arrive.

We attend the trade coordination meetings the GC schedules and mark up the overlay drawings wherever our tray conflicts with duct or a sprinkler main. That way most conflicts get worked out on paper instead of in the ceiling.

Phasing cabling work in an occupied building

A large share of our work is in buildings that stay open while we’re there: a state agency floor, a college building in session, a senior housing tower where every unit is occupied. The cabling scope stays the same in those buildings, but the sequencing changes.

We build the new IDF and pull the new backbone first, while the old network keeps running. Horizontal cable is pulled in zones, usually a wing or a corridor at a time, and terminated in the new IDF. We cut over one zone at a time, after hours or on a schedule the owner sets, and test each zone before moving on. Old cable comes out only after the new cable is live, and abandoned cable is removed where the code and the spec require it.

In occupied offices and units, we schedule entry in advance, protect furniture and floors, keep dust down, and leave each space usable at the end of every shift. On the State Controller’s Office tenant improvement, a working state agency floor stayed in use through the network cabling and room buildout. We take the same approach on affordable and senior housing rehabs, where resident notification and unit access are part of the schedule.

Labeling, certification and closeout documents

The documentation matters as much as the cable, so our cabling jobs come with three things.

Labeling to ANSI/TIA-606. Every cable, outlet, patch panel port and backbone strand carries a unique machine-printed identifier that matches the record drawing and the test results. We agree on the scheme with the owner’s IT staff before we start, so the labels match how they think about the building rather than how we do. A typical scheme encodes the telecom room, the patch panel and the port, so a technician standing at the faceplate can find the other end without a drawing.

Permanent link certification. Every horizontal link is tested with a calibrated tester rated for the category installed (Level III for Cat6, Level IIIe for Cat6A) to the permanent link limits in ANSI/TIA-568.2-E for that category. We record wire map, length, insertion loss, NEXT, return loss and the rest of the parameter set for every link. Failed links are reworked and retested before turnover, and you get the full test database, not just a summary sheet. Backbone fiber is tested to the Tier 1 and, where specified, Tier 2 requirements described on our fiber page.

Closeout package. This includes record drawings showing every outlet, pathway and room as installed, the test results, the labeling scheme, firestop photos and listed system numbers, manufacturer warranty registration where the spec calls for a warranted system, and the product submittals as approved.

Budget planning for this scope depends on drop count, category, pathway type, ceiling type, building height and whether the building is occupied. Our structured cabling cost guide for California walks through those variables with planning ranges rather than quotes.
