CSLB #472017, C-7 Low Voltage Systems

Market

Low Voltage Contractor for Retail and Shopping Centers

We build one site kit and repeat it at every store, or handle the landlord scope from the riser to the suite, for directors of IT and store development at regional chains, franchisee groups, national rollout integrators who need a California licensed subcontractor, and the property and asset managers who run shopping centers. Either way, the documentation follows one consistent format.

No obligation. If the work is outside our license, we'll tell you.

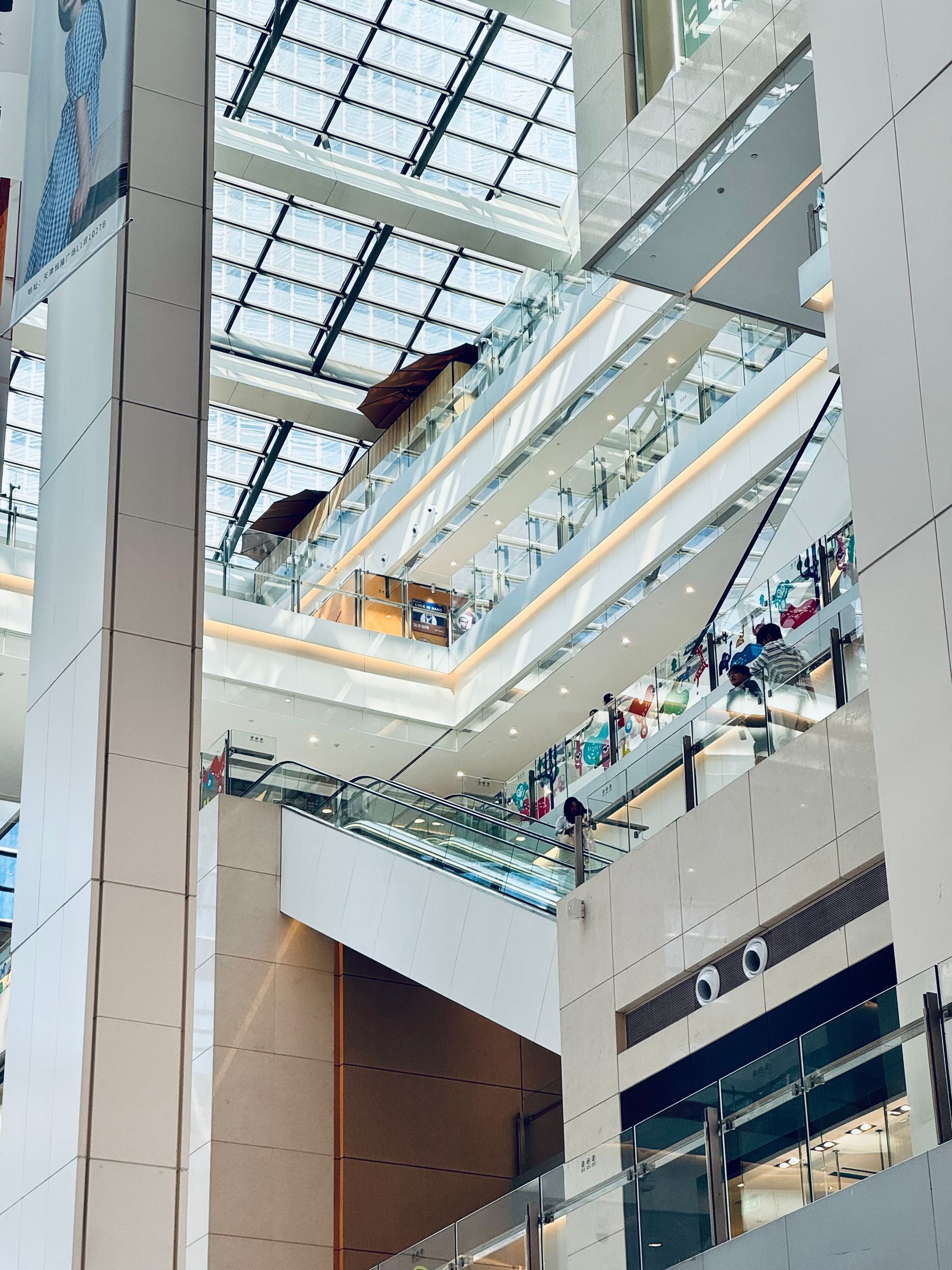

CSLB #472017 · Licensed C-7 contractor Multi level shopping mall interior with escalators, glass ceiling and bright lighting
Who we work with
  • Directors of IT and VPs of store development at chains
  • Franchisee groups operating several units
  • Construction project managers at the brand
  • National rollout integrators needing a California subcontractor
  • Property and asset managers of shopping centers
Typical systems
  • Store cabling kit fixed by prototype
  • Point of sale and payment terminal drops
  • Loss prevention cameras and door contacts
  • Music, paging, menu boards and digital signage
  • Guest Wi-Fi on a separate patch field
  • Common area cameras, audio and wayfinding
Rules and standards that apply here
  • PCI DSS 4.0.1 Requirement 11.4.5, physical separation and labeled pathways
  • Civil Code 1798.90.5 to 1798.90.55 for ALPR in parking areas
  • ADA accessible point of sale and assistive listening
At a glance
Two scopesChain store site kit, and landlord common areas
Site kitFixed drops, one rack elevation, one label scheme
Loss preventionA camera per register, lens set to read the drawer
PCI rolePhysical separation, labeling, documented pathways
CoverageSacramento, Bay Area, Los Angeles, San Diego
LicenseCSLB #472017, C-7 Low Voltage Systems

Chain stores and shopping centers: two different retail scopes

Retail low voltage is two markets sharing a building. One is the chain or single tenant store, where the buyer is a director of IT or a VP of store development who needs the same store built the same way in every market. The other is the shopping center, where the buyer is a property manager or asset manager who owns the common areas, the risers, the parking and the connection point at each suite door, and who picks up a small cabling job every time a tenant turns over.

The two scopes barely overlap. A store bid is a repeatable kit priced per site, while a center bid covers infrastructure, coverage and tenant demarcation. We bid both, separately and to the same standard.

Telelink Business Services is a licensed C-7 Low Voltage Systems Contractor, CSLB License #472017. None of our published projects is a retail or shopping center job yet. What they do show is the scope on this page: we self-perform the cabling, camera, access control, wireless, signage and fiber work to ANSI/TIA-568, TIA-569, TIA-606 and TIA-607, and certify it before turnover. You can see it at the State Controller’s Office, Little Tokyo Towers and Touro University.

What we self-perform across a store program

We self-perform structured cabling and terminations, telecom room and rack buildout, cameras and recording, access control field devices, wireless, audio and paging distribution, signage cabling, fiber backbones and the documentation package that goes with them. We build to ANSI/TIA-568, TIA-569, TIA-606 labeling and TIA-607 bonding. Permanent links are certified with a calibrated tester rated for the category installed (Level III for Cat6, Level IIIe for Cat6A). At closeout you get as-builts, a labeling schedule, test results and photographs.

Each of those projects lines up with part of a retail program. At the State Controller’s Office in Sacramento, we did cabling, a network room buildout and cameras on an occupied floor, working around the agency’s hours and access rules. That’s the same constraint you have in a store that’s still open for business. At Little Tokyo Towers in Los Angeles, we repeated one per unit package across an occupied multifamily building, one door at a time to a fixed scope. That’s multi site repeatability packed into a single building. At Touro University in Vallejo, we tied a campus building back on a fiber backbone we installed, spliced and tested, which is the same backbone problem a shopping center has. A rollout adds travel and volume to work we already do.

The site kit: one standard repeated at every store

What a chain is paying for is the same store, built and documented the same way at every location. We define the kit once and then repeat it, and that upfront definition is what helps control cost across the program.

Site kit elementWhat gets fixed onceWhat it helps prevent
Drop count by prototypeA fixed schedule per store formatPer site change orders
Telecom room location specSame wall, same clearances, same backboardRacks that won’t fit the space
Rack elevationOne drawing, one patch panel orderA different rack in every market
Labeling schemeOne TIA-606 scheme across the portfolioFour naming conventions
Photo documentation packageThe same shots at the same stagesA help desk that can’t see what’s behind the wall
Test result formatOne tester output, one file naming ruleA closeout archive that’s hard to search

Once the prototype is set, the drops are predictable: point of sale lanes (dual homed where the prototype calls for it), pin pad and payment terminal runs, the back office and manager station, and wireless access points. Add a drop for the music and paging head end, drops for menu boards and signage, and spares where the brand knows it’ll add more. Guest Wi-Fi lands on a patch field that’s physically separate from the cardholder data environment, not just on a separate VLAN. The structured cabling page covers category selection, testing and the closeout format.

Restaurants use the same kit in a tougher environment. Kitchen display runs pass through heat, steam and washdown, so we specify the jacket, the enclosure rating and a route away from the hood and dish areas instead of assuming them. A drive through adds the vehicle detection loop, the timer system, the order confirmation display and the headset base. The site or paving contractor sawcuts and sets the loop. We pull and terminate the home runs back to the timer, so we coordinate the pathway under the drive lane before anything gets paved.

Registers, payment and loss prevention

A register is a small cluster of systems, and when any of them fails, everyone notices. The drops themselves are simple. Getting the camera geometry and the trade boundaries right takes more care.

Camera coverage at the register. A camera that shows a register from across the store proves a transaction happened, but it can’t read the drawer. Loss prevention coverage means a camera at each register position, with the lens chosen for the distance to the till and the field of view an investigator needs. The camera is mounted so the operator’s body doesn’t block it, set for the light level at the counter, and time synchronized with the point of sale so the exception report and the video line up. We lay out coverage on the store plan and verify the views on site. The security camera page covers sensors, storage sizing and NDAA Section 889 documentation.

Doors, pedestals and the perimeter. This covers door contacts at the front and receiving doors, readers at back of house and the stock room, and electronic article surveillance pedestals at the entry. Pedestals need power and a communications path to the head end. Their position also competes with the entry mat, the door swing and the camera view, so we settle it on the plan instead of on install day. Electrified door hardware goes to Division 08 or a licensed C-28 contractor. Intrusion alarm and alarm monitoring are alarm work under a BSIS Alarm Company Operator license, carried by a licensed alarm company.

The landlord scope: common areas, risers and turnover

A center owner buys different things than a tenant does, and most of it is permanent infrastructure.

  • Common area and parking lot cameras, plus the parking structure if there is one, laid out for the sight lines and night light levels on site rather than by square footage.
  • Tenant demarcation. The landlord owns the path to the suite, and the tenant owns what’s inside it. That boundary should be a labeled, documented, physical point that’s the same at every suite, because it’s a common source of argument at turnover.
  • Riser management and pathway allocation. There’s only so much sleeve and tray capacity, every tenant wants some, and abandoned cable from prior tenants is filling it up. Pulling abandoned cable at turnover keeps the riser usable.
  • Common area Wi-Fi on its own patch field, kept separate from every tenant network.
  • The security office and remote monitoring room. It’s a rack room with a video wall and a console, and cooling and cable management there take real planning.
  • Food court and common area audio and paging, zoned so a food court page doesn’t play inside every suite.
  • Wayfinding and directory signage, cabled and networked back to the same head end.
  • Tenant improvement turnover. Every new tenant is a small cabling job on a short timeline, and the landlord wants a contractor who already knows the building.

Compliance requirements on a retail low voltage bid

RequirementWhat it saysWho carries it
PCI DSS 4.0.1 Requirement 11.4.5Segmentation controls must be penetration tested at least once every twelve months and after any change to segmentation controls or methodsThe merchant and its assessor. Telelink provides physical separation, labeling, documented pathways and lockable cabinet space
Civil Code 1798.90.5 to 1798.90.55An ALPR operator adopts and posts a usage and privacy policy, logs every access to the information and sets a retention period. Public agencies face additional restrictionsThe operator. Telelink installs and maintains the hardware
ADAAccessible point of sale and assistive listening where the space calls for itDesign team sets counts and locations. Telelink installs and tests

It helps to be precise about what PCI asks of a cabling contractor. PCI segmentation is network engineering: VLANs, firewall rules, access control lists and a scope boundary an assessor will accept. The cabling contractor’s part is physical. That means separate patch fields for the cardholder data environment, distinctly colored and labeled cardholder cabling, documented pathways, and lockable cabinet space that’s kept locked. We deliver and document that physical half so the assessor can see it.

One licensed contractor across four California regions

A California chain with stores in Sacramento, the Bay Area, Los Angeles and San Diego usually ends up with a different subcontractor in each market. Each one bids differently, labels differently, tests with a different meter and hands back a different closeout package. When a store has a problem two years later, the help desk is sorting through four naming conventions and calling four different numbers.

One licensed contractor working all four regions to one standard helps with that. The kit gets defined once, there’s one labeling scheme, test results arrive in one format, and the photo package looks the same at every site. We work across the Sacramento and Central Valley, Bay Area, Los Angeles and Southern California and San Diego markets on commercial and institutional work, under one license and one set of drawings.

Next step

For a store program, send the prototype drawings, the site list and the store format breakdown through the request a bid page. We’ll send back a per site price for each format, with the kit, the labeling scheme and the closeout package defined once and repeated. For a shopping center, send the common area plans, the riser drawings and the tenant turnover schedule. Our bid will show the demarcation point at each suite and where the landlord and tenant boundary falls for every system.

FAQ

Questions about retail & shopping centers projects

How do you keep a multi-store program to one standard?

We agree on a site kit before the first store. That means a fixed drop count per prototype, one telecom room location spec, one rack elevation, one labeling scheme and one photo and test package per site. Each store is built and documented against that kit. That way the last as-built reads like the first, and a technician who's never been to that store can find a run from the drawing. Without a kit, a rollout tends to end up with as many labeling schemes as it has installers.

Link to this answer
What's the cabling contractor's role in PCI compliance?

It's a physical role. We provide separate patch fields for the cardholder data environment, distinctly colored and labeled cardholder cabling, documented pathways and lockable cabinet space, all documented so your assessor can see them. PCI DSS 4.0.1 Requirement 11.4.5 then requires the segmentation controls themselves to be penetration tested at least once every twelve months and after any change to those controls or methods. That testing sits with the merchant and its assessor.

Link to this answer
Can one contractor cover all of our California stores?

Yes. A chain with stores in Sacramento, the Bay Area, Los Angeles and San Diego usually ends up with a different subcontractor in each market, and a different labeling scheme, test format and closeout package from each one. We're licensed statewide and work all four regions to one standard. So the kit gets defined once, the labels read the same in every market, and two years later the help desk is looking at one naming convention.

Link to this answer
Who installs the electronic article surveillance pedestals?

The EAS vendor normally furnishes, sets and commissions the pedestals, since the tuning is theirs. We provide the pathway and the communications cabling and coordinate the power location with the electrician. Before the storefront is built, we also settle the pedestal position on the plan against the door swing, the entry mat and the entry camera view. Getting that on paper early keeps a pedestal from blocking the camera the loss prevention team wanted.

Link to this answer
Do you install license plate recognition in the parking areas?

We install and maintain the hardware. Operating the system, hosting the data and granting access to license plate recognition information stay with the operator. California Civil Code sections 1798.90.5 through 1798.90.55 put those duties on the operator: adopt a usage and privacy policy, post it conspicuously, log every access to the information and set a retention period. Public agencies face additional restrictions, and the policy should be written before the cameras go live.

Link to this answer
Can you work in a store that stays open?

Yes. Most chain work happens after hours or overnight when the sales floor is clear, and most landlord common area work is scheduled around center hours. Our crews follow the posted access rules, keep the path of travel clear, clean up before the doors open and photograph the finished work. Three of our four published projects were done in occupied buildings, and that same sequencing carries over to a store.

Link to this answer
