| Typical scope | Industrial Ethernet, fiber, Wi-Fi, cameras, paging |
|---|---|
| Plant floor | M12 X coded, IP67 switches, fiber to each cell |
| Environment | Heat, cold storage, coolant, dust, forklifts |
| Wireless | Predictive survey, validated with racking loaded |
| Gate access | DoorKing (DKS) telephone entry and controllers |
| License | CSLB #472017, C-7 Low Voltage Systems |
What a plant or warehouse environment does to cabling
In a warehouse the ceiling is forty feet up, the floor is a forklift lane, and the nearest telecommunications room can be a thousand feet away. A plant adds coolant mist, weld spatter, vibration and machines that move their own cable thousands of times a shift. Office-grade cable, cameras and access points usually won’t hold up in either building.
Telelink Business Services is a licensed C-7 Low Voltage Systems Contractor, CSLB License #472017. Our published work doesn’t include a plant floor OT project yet. What it does include is the systems on this page, self-performed in commercial and institutional buildings across California, built to the ANSI/TIA standards and certified before turnover. The State Controller’s Office job covered cabling, a network room and cameras, and Touro University covered an IT room and an OTDR tested fiber backbone between buildings. This page covers what those systems need in a plant, warehouse, distribution center or yard.
| Condition | Effect on standard cable and equipment | What we specify |
|---|---|---|
| Roof deck heat | Performance and jacket life drop above the rating | Cable rated for the space, pathway below the deck |
| Cold storage | Condensation in pathways, brittle jackets | Low-temperature cable, sealed penetrations, gear outside the box |
| Dust and washdown | Fouled connectors, corroded switches | Sealed floor-level IDF enclosures, IP-rated cameras and APs |
| Oil, coolant, weld spatter | PVC jackets soften, crack and open | Oil and weld resistant jackets, IP67 field switches |
| Motion in carriers and on arms | Cable work-hardens and breaks a conductor | Continuous flex and torsion rated cable, rated in flex cycles |
| Forklift traffic | Crushed cable, sheared boxes, struck cameras | Conduit or tray above mast height, armored runs, bollards |
| Classified areas | Standard wiring methods are not permitted | CEC Article 500 series methods per the classification drawing |
Inside the building, we run cabling in conduit, tray or a protected chase and label it to TIA-606, so your technician can trace a run from the labels.
Who buys low voltage in industrial and manufacturing
- Plant and manufacturing facilities engineers buy cabling to the production floor, wireless for the plant, paging that carries over machinery, and access control for tooling, chemical and finished goods areas.
- Controls and automation integrators buy the physical layer under a line they’re commissioning: connectors, cable ratings, field switch enclosures and the fiber that reaches each cell. They usually own the acceptance test.
- Warehouse and distribution operators buy Wi-Fi for scanners and forklift terminals, cameras for the docks and yard, and gate access for the truck entrance.
- Industrial property owners and developers buy shell-level systems: conduit and backbone pathway, a telecommunications room, yard cameras and gate entry a tenant can build on.
- Logistics and 3PL IT directors standardize across sites and want the same platforms and labeling in every building.
- General contractors carrying Division 27 and 28 on industrial shells and tenant improvements need a subcontractor with lifts and a plan for the yard.
Manufacturing: industrial Ethernet, OT networks and the plant floor
A plant floor works differently from an office. The network on the line runs deterministic protocols, the connectors aren’t RJ45, and the cable moves.
Protocols and connectors. PROFINET, EtherNet/IP and EtherCAT run on Ethernet media, but the field side uses M12 circular connectors: M12 X coded for gigabit and above, M12 D coded for 100 Mbit device-level runs. An RJ45 patch cord in a cable carrier wears out quickly. Field switches and patch enclosures are IP67 rated and mounted at the machine instead of in a wall closet.
Fiber to each production cell. A copper run from the equipment room to a cell is long, and it crosses a ground potential difference on the way. Fiber breaks the ground loop, gets past the 100 meter copper limit, and keeps the link out of a variable frequency drive’s noise field. We land it on a media converter inside the cell enclosure.
Cable that moves and cable that gets hit. Continuous flex cable goes in cable carriers and torsion rated cable on robot arms, both specified in flex cycles rather than years. Oil, coolant and weld spatter degrade standard PVC, so we choose jackets for whatever the cable gets splashed with. Runs in forklift lanes are armored or in raceway.
Classified areas. Coating booths, solvent storage and grain handling are commonly classified locations. Battery charging areas can be too, depending on ventilation and the facility’s area classification. Wiring methods there follow the California Electrical Code Article 500 series. The boundaries come from the classification drawing, not a walkthrough, so we ask for it before quoting.
Machine vision and OT segmentation. An inspection station pushes sustained bandwidth and doesn’t tolerate jitter. So vision cameras get their own ports, their own VLAN and, where the integrator requires it, their own physical network, cabled to the camera manufacturer’s length and shielding requirements. The plant and business networks are separated, with a DMZ between them carrying the historian. We cable and label the two as separate systems, with separate patch fields and cable colors, so the boundary is visible in the room.
Industrial wireless. AGVs and AMRs roam constantly, and a slow roam can drop their session. We keep cell sizes small and consistent along the travel paths, set roaming parameters for the fleet’s radios, and validate by driving the route instead of walking it.
Two more things belong in the bid. The controls or automation integrator is often our real counterparty rather than the owner, so we confirm early who owns the network design and the acceptance test. And arc flash boundaries near energized motor control centers restrict who works where and when, which can push a pull near an MCC into a shutdown window. Network cabling, fiber, industrial wireless and paging are all scopes we self-perform, built to the specification above.
High-bay wireless that survives racking and forklifts

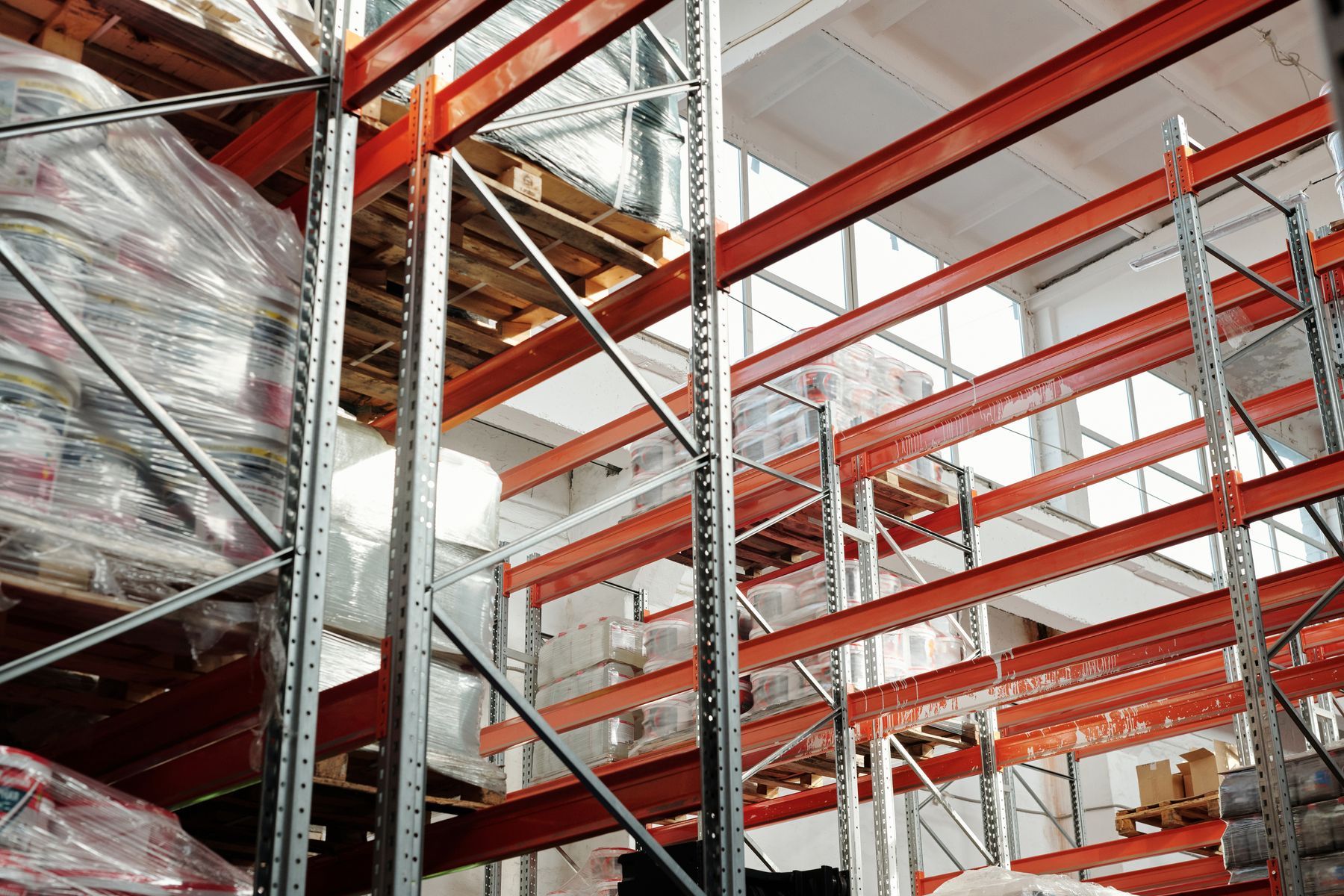

Warehouse Wi-Fi carries handheld scanners, forklift terminals, label printers and voice picking headsets. The devices move, the aisles are lined with steel racking that blocks and reflects signal, and inventory changes the RF environment every shift. A design validated on an empty floor often has dead aisles once the racks are loaded.
We start from the racking drawings, model the aisles in a predictive survey, and place access points where the model says the signal reaches the floor: at aisle ends, above the aisles with downtilt or directional antennas, or on columns. We choose mounting height, antennas and the channel plan for the racks rather than the roof. Forklift terminals need fast roaming, so we keep cell sizes consistent and avoid the sticky-client problem you get from a few high-power APs on the roof deck. Once racking and inventory are in, we validate with a walk test and adjust before signoff. We install and configure managed wireless on Cisco Meraki, including the outdoor and ruggedized models, or on your IT team’s platform.
Long fiber runs between buildings and across the yard
Industrial sites are measured in acres, and one telecommunications room can’t reach every corner with copper. The backbone is single-mode fiber: between buildings in underground conduit, across the plant to remote IDFs, and out to the gate house and camera poles.
Outside plant fiber is installed to TIA-758. California Electrical Code Article 770 governs how far unlisted outside plant cable can run inside a building before it transitions to a listed cable, so we plan the entrance facility around that transition. We use armored cable where rodents, direct burial or mechanical damage call for it, and OTDR test every splice and termination. Our fiber optic cabling page covers media, connectors and testing in more detail.
We avoid copper between buildings. A copper cable leaving one building and entering another needs primary protection at both ends, and can carry ground potential differences between the structures. Fiber has neither problem.
Yard, dock and gate cameras that hold up outdoors
Cameras on an industrial site have three jobs, each with its own specification.
Dock doors need wide dynamic range to see both the trailer in full sun and the dock plate in shadow. They’re mounted clear of a forklift mast, with the seal and the trailer number in frame.
Yard and trailer parking need long-range coverage from poles or building corners, IR for night, and an outdoor rating for heat, dust and rain. Poles beyond 100 meters get fiber, with a media converter in a weatherproof enclosure.
Gates need an overview camera at the entry panel and a camera set for plate capture, which depends on angle, height, shutter speed and IR, not resolution alone.
We lay out coverage with our camera coverage calculator and the site plan, then check the views at noon and at night before turnover. We install and configure Cisco Meraki MV. Axis and Hanwha Vision are commonly specified outdoor lines, and we install to whichever line is named. Outdoor runs get surge protection at both ends. If the operator holds federal contracts, NDAA Section 889 restricts the equipment it can use, and we document the actual manufacturer of every device.
Plant paging and gate access for industrial sites
Paging. On a plant or warehouse floor, a page has to be heard over forklifts, conveyors and presses. That means horn speakers on a 70-volt system, selected against the measured ambient noise floor, zoned by process area, and driven from a gateway tied to the phone system. Visual strobes go where the noise floor makes an audible page unreliable. We install the speakers and amplifiers and set levels zone by zone with the operation running, rather than on a quiet Saturday.
Gate and vehicular access. We install and configure DoorKing telephone entry panels, keypads, card and long-range readers on pedestals, loop detectors and controllers, plus the low voltage wiring to the operator. The entry system ties into the same access control platform as the building doors. The gate operator, its line voltage power and the UL 325 entrapment protection devices belong to the gate contractor and the electrician.
Next step
Send us the site plan, the racking layout or plant floor drawings, and the list of systems through the request a bid page. Our bid will list the environmental ratings, the connector and cable specifications, the fiber routes, and the scope lines with the gate contractor and the electrician. General contractors can see how we fit your schedule on our general contractor page.
